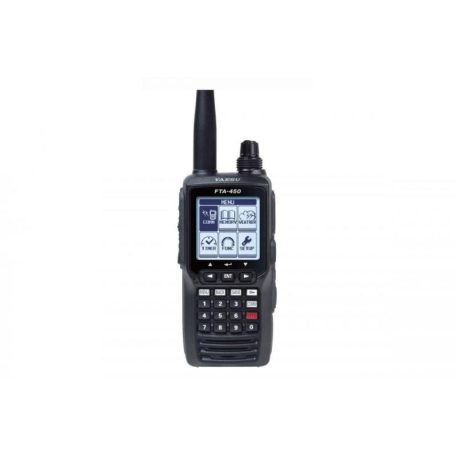

Yaesu FTA-450L airband radio features:
Easy to Operate Menu System
The Yaesu FTA-450 comes configured with an easy to operate icon driven menu system. The displays and menu settings are logically configured for a more intuitive user interface.
Huge Dot Matrix Display (160 x 160 dots)
The Yaesu FTA-450 features a huge 1.7" x 1.7" full dot matrix LCD display with full backlight and dimmer. The high resolution display makes it easier to view all the great features the Yaesu FTA-450 has to offer.
200 Memory channels with up to 15 Alphanumeric characters
The Yaesu FTA-450 can store up to 200 Memory channels for quick and easy retrieval. With the capability of using up to 15 Alphanumeric characters per name the Yaesu FTA-450 allows for a better channel description.
Yaesu FTA-450L airband radio box contains:
- FTA-450L radio
- SBR-12LI 1800 mAh battery
- SAD-11/SAD-25 AC charger adapter
- SBH-11 charger cradle
- SDD-12 car charger
- SRA-13A antenna
- SHB-11 belt clip
- SCU-15 headset adapter cable
- SBT-12 battery tray
- USB cable
3 years warranty!
Yaesu FTA-450L airband radio specifications:
| General |
|
| Frequency Range |
TX:118.000 to 136.975 MHz, RX:118.000 to 136.975 MHz, 161.650 to 163.275 MHz (Weather Channels; USA/Canada only) |
| Channel Spacing |
25 kHz/8.33 kHz |
| Emission Type |
TX:AM, RX:AM & FM (FM:for receiving the Weather Channels) |
| Supply Voltage |
6.0 to 9.5 VDC |
| Current Consumption (approx.) |
300 μA (power off), 70 mA (battery saver on, saver ratio 50%), 80 mA (squelch on), 300 mA (receive), 0.9 A (transmit 1.5 W Carrier) |
| Temperature Range |
+14 ºF to + 140 ºF (–10 ºC to +60 ºC) |
| Case Size (W x H x D) |
2.4 x 5.2 x 1.3 inches (62 x 133 x 34 mm) with SBR-12LI |
| Weight (approx.) |
14.5 oz (410 g) with SBR-12LI, antenna and belt clip |
| Receiver |
|
| Circuit Type |
Double-conversion superheterodyne |
| IFs |
47.25 MHz & 450 kHz |
| Sensitivity |
Better than 0.8 μV (for 6 dB S/N with 1 kHz, 30 % modulation) |
| Selectivity |
>8 kHz/–6 dB |
| Adjacent CH. Selectivity |
<25 kHz/–60 dB |
| AF Output (@7.4 V) |
0.8 W @ 16 Ohms, 10 % THD |
| Transmitter |
|
| Power Output (@ 7.4 V) |
5.0 W (PEP), 1.5 W (Carrier Power) |
| Frequency Stability |
Better than ±1 ppm (+14 ºF to + 140 ºF [–10 ºC to +60 ºC]) |
| Modulation System |
Low Level Amplitude Modulation |
| Spurious Emission |
>70 dB below carrier |
| Int. Microphone Type |
Condenser |
| Ext. Mic. Impedance |
150 Ohms |
| Specifications are subject to change without notice or obligation. |
