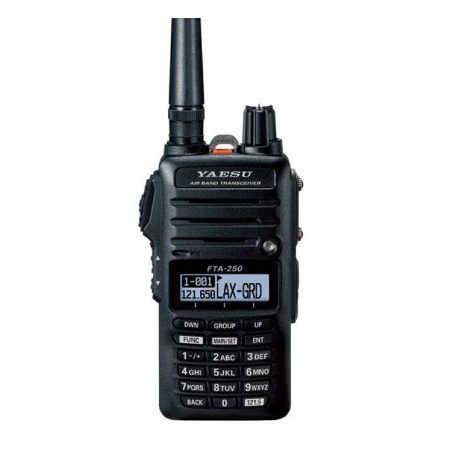

Yaesu FTA-250L airband radio functions:
Compact size
In response to the huge demand for a compact Airband transceiver, Yaesu has responded with our smallest airband transceiver yet, at only (2.1" W x 4.1" H x 1.2" D) the FTA-250L is guaranteed to fit in the smallest of places.
250 Memory Channels
Now with an expanded memory bank the FTA-250L can now store up to 250 memory channels for quick and easy recall, making this transceiver a pleasure to operate for heavy avionics users.
High-Capacity 1950mAh Li-ion battery
The FTA-250L comes packaged with our largest capacity battery yet. measuring in at 1950mAh, even heavy radio users are guaranteed to have a radio that will keep going strong all day long.
Yaesu FTA-250L Supplied Accessories:
- Lithium-ion Battery Pack SBR-25LI
- AC Adapter SAD-20
- Charger Cradle SBH-22
- Cigarette Lighter DC/DC Converter SDD-12
- Helical Antenna SRA-18A* or YHA-73
- Headset Adapter Cable SCU-15
- Belt Clip SHB-18
- Ferrite Core L9190192
- Operating Manual
- Warranty Card
- * Antenna gain: 2.15 dBi, Impedance: 50 ohms
3 year warranty for all Yaesu airban radios!
| Frequency Range |
TX:118.000 to 136.975 MHz RX:118.000 to 136.975 MHz, 161.650 to 163.275 MHz (Weather Channels; USA/Canada only) |
| Channel Spacing |
25 kHz/8.33 kHz (Europe only) |
| Emission Type |
TX:AM, RX:AM & FM (FM:for receiving the Weather Channels) |
| Supply Voltage |
6.0 to 9.5 VDC (Battery Terminal) 9.0 to 10.5 VDC (EXT DC JACK with Charging) |
| Current Consumption (approx.) |
300 μA (power off), 70 mA (battery saver on, saver ratio 50%) 90 mA (squelch on), 300 mA (receive), 900 mA (transmit 1.5 W Carrier) |
| Temperature Range |
+14 ºF to + 140 ºF (–10 ºC to +60 ºC) |
| Case Size (W x H x D) |
2.1 x 4.1 x 1.2 inches (52 x 105 x 30 mm) with SBR-25LI |
| Weight (approx.) |
10.6 oz (300 g) with SBR-25LI, antenna and belt clip |
| Receiver |
|
| Circuit Type |
Double-conversion superheterodyne |
| IFs |
47.25 MHz & 450 kHz |
| Sensitivity |
0.8 μV typ (for 6 dB S/N with 1 kHz, 30 % modulation) |
| Selectivity |
Better than 8 kHz/–6 dB (25 kHz step) Better than 2.8 kHz/–6 dB (8.33 kHz step) |
| Adjacent CH. Selectivity |
Less than 25 kHz/–60 dB (25 kHz step) Less than 8.3 kHz/–60 dB (8.33 kHz step) |
| AF Output (@7.4 V) |
0.7 W @ 16 Ohms, 10 % THD |
| Transmitter |
|
| Power Output (@ 7.4 V) |
5.0 W (PEP), 1.5 W (Carrier Power) |
| Frequency Stability |
Better than ±1 ppm (+14 ºF to + 140 ºF [–10 ºC to +60 ºC]) |
| Modulation System |
Low Level Amplitude Modulation |
| Spurious Emission |
>70 dB below carrier |
| Int. Microphone Type |
Condenser |
| Ext Mic. Impedance |
150 Ohms |
| The fully-charged battery lasts for 16 hours on the transceiver under the conditions below |
|
| Operation ratio ... TX |
RX:Standby = 5:5:90 (sec) |
| Power Output ..... 5 W |
|
| Specifications are subject to change without notice or obligation. |
